Focusing on the test requirements for the development process of individual components, subsystem assemblies, etc., we provide the mechanical properties of the body-in-white: white body stiffness test, white body strength test, white car acoustic stress analysis test, etc. Two doors cover open and close parts, provide four doors and two cover performance and durability test bench, door lock door hinge strength and durability test bench lamp. For safety testing, we provide tests from various levels, such as roof static pressure, door intrusion to headrest impact, and belt anchorage. For durability of sub-components, we provide pedals, wipers, window lifters, and other test equipment. Ensure that automotive R&D companies test components from the single component to the assembly level, from performance, durability to safety.

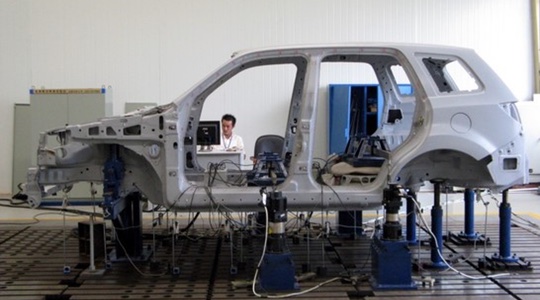

Body Stress Analysis System

The stress analysis system is divided into a white body stiffness test and a white body strength test. The purpose of the vehicle body strength and stiffness test is to understand and verify whether the vehicle body has sufficient strength, durability and rigidity to deliver the required performance under various conditions of use and environment. Strength test is divided into: bending tester torsion test. The stiffness test is divided into: extrusion test, etc.

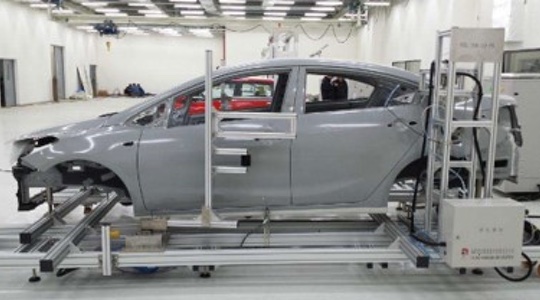

Four door and two cover performance durability tester

The test stand is suitable for comprehensive performance and endurance tests of door hinges, stoppers, door locks, door seals, and other assemblies for side doors, engine compartment lids, trunk lids, and commercial vehicle side sliding doors. Real-time measurement of unlocking force, opening force and closing force of side doors, performance curve of opening force, closing force and door rotation angle, unlocking force, opening force and closing force of engine compartment lid and trunk lid, electric glass lifter during measurement test, rearview mirror and door lock operating current. The unlocking, opening and closing tests of the engine compartment lid and the trunk lid, and the opening and closing of the inside and outside opening handles of the front and rear side doors, and the opening and closing tests of the inside and outside are realized.

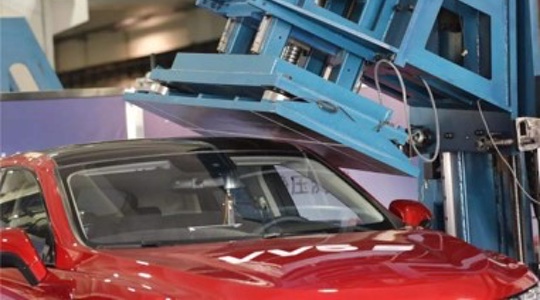

Roof static pressure and side door intrusion test rig

The roof/side door strength test rig is mainly used for roof/side door strength test rigs used for roof compression, side door crumple and other tests. According to the relevant standards, the strength test of the top of the occupant compartment and the strength test of the side door of the car can be completed.
It is to evaluate the car's rollover accident, in order to ensure the occupant's living space, the minimum strength that the roof should have and the car in the side collision, in order to make the side door into the car room to minimize the risk, the side should have the minimum strength.

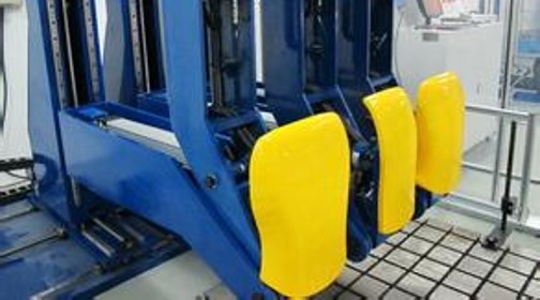

Seat headrest static strength test bench

Seat headrest strength test bench is mainly used for static strength test of car seat headrest, strength test of seat backrest and its adjusting device, and vertical strength test of car seat headrest; it can also be used for stiffness test of seat backrest.

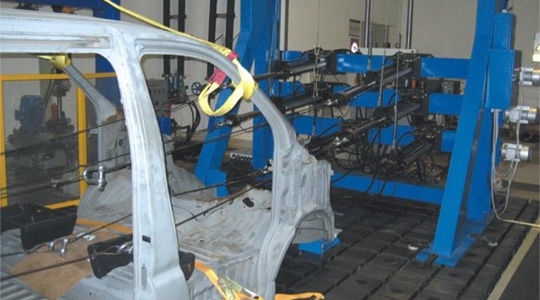

Car seat belt fixing point and seat strength test bench

The seat and seat belt anchorage strength test bench is mainly used to test the strength of the car seats, seat belt anchorage points, and dedicated test equipment for the primary school bus seats and their vehicle attachments. In addition, it can also be used to measure the strength of the backrest of a car seat. The test stand is one of the important test stands for testing and evaluating whether the car seat product development technical indicators meet the safety design requirements.

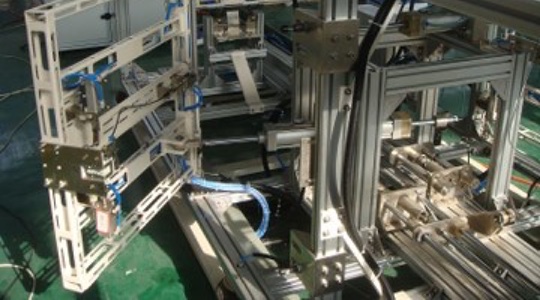

Door lock door hinge performance and durability test bench

The test stand is suitable for the performance and endurance test of side door locks (front and rear left and right), luggage compartment locks, hood locks, and side door sliding door locks of various automobiles.Side door lock durability test can be opened, closed, open, open, child lock and other tests. The luggage compartment lock can be opened and closed. Hood lock open and other test actions. Sliding door sliding door, door lock open, close. All kinds of lock actions can be edited arbitrarily. Detect whether the door lock is normally open during the test and the number of failures of the central controller.

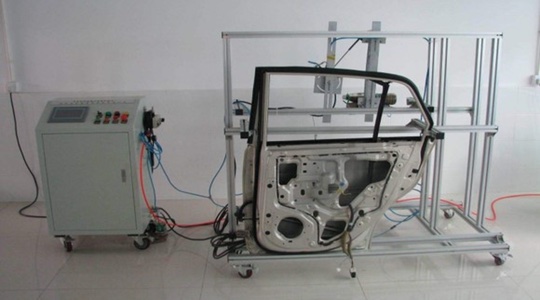

Glass lifter durability tester

For the actual requirements of the glass lifter product simulation, the durability of the glass lifter is tested. Can test electric and manual glass lifter; glass stroke, test voltage, test stall current, lifting window time, elevator life, parallelism, static strength, operating strength, anti-clamping and so on.

Wiper durability test bench

The wiper test stand is mainly used to complete the performance and durability test of the wiper assembly. Test items: scraping area; scraping frequency; automatic return; scraper blade pressing force on the blade; braking; scraping effect; durability and other tests.
